Meyra Nano C
Meyra Nano C
Couldn't load pickup availability
DESIGN MEETS LIGHTNESS

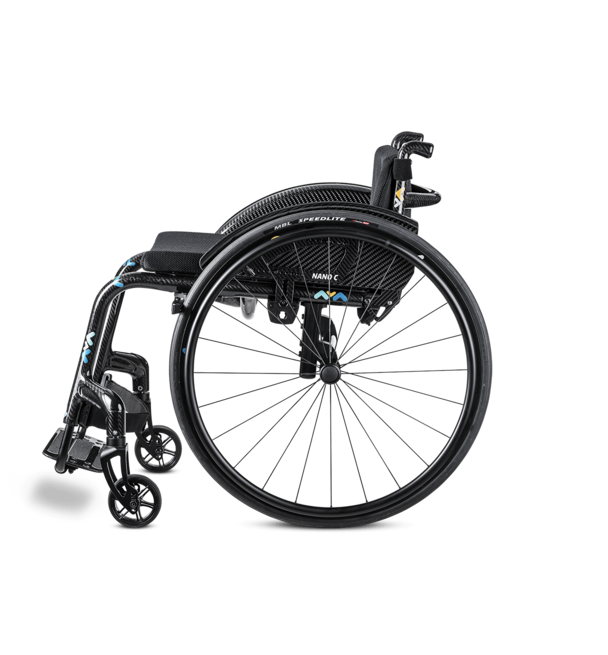

The NANO C excels with its lightness and stability. The lightweight carbon components such as the frame, the back, the side panels and the footplate play a key role here. The frame is a one-piece monocoque construction, giving it a specific rigidity that has a positive effect on the handling according to test users.
Weighing in empty at just 7.5 kg, the NANO C is the lightest multi-adjustable monocoque active wheelchair. The many adjustment options and high-quality carbon components ensure an exceptionally high level of functionality and suitability for everyday use, even in the basic version. And with its modern design, it’s also a real eye-catcher! In addition to the carbon look, an individual wet paint finish is optionally available.
User profile
- Numerous medical conditions
- Severely afflicted
- Transport weight from 5 kg up
- Very good handling characteristics thanks to monocoque construction
- Excellent loading characteristics
- Perfectly adaptable
- Compatible with NANO family parts
- Narrowest overall width SW + 16 cm
- Carbon side panel and footplate included in basic equipment
- Reflective sticker design (option)
- High-quality standard equipment
- Weight-optimised frame design
- Individual wet painting
TECHNICAL FEATURES
Dimensions in mm, weights in kg, wheels in inches, speeds in km/h, dimension tolerance ± 10 mm, data subject to design changes.
| Total width in mm | Seat width +160 | |
| Total height in mm |
Seat height rear + back height | |
| Back height in mm |
250 – 400 | |
| Seat height at front edge (FSH) in mm | 450 – 530 | |
| Seat height at rear edge (RSH) in mm | 360 – 510 | |
| Seat width in mm | 380 / 400 / 420 / 440 | |
| Seat depth in mm | 380 / 400 / 420 / 440 / 460 | |
| Frame retraction in mm |
20 per page | |
| Front frame angle in degrees |
80 | |
| main emphasis in mm | 45 – 145 | |
| Length with / without footrest in mm |
800 – 982 | |
| Weights: | ||
| max.user weight in kg | 100 | |
| Empty weight in kg | from 7,5 | |
| Transport weight in kg | from 5 | |
| Mechanical back angle in degrees | -5 / 0 / 5 / 10 | |
